Armatura ORS -Etansare dreapta
5,50 RON
Buc
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Descriere

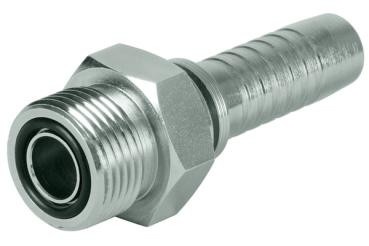

Armatura ORS -Etansare dreapta
Filet AMERICAN etansare dreapta , FILET EXTERIOR - forma de conexiune rezistenta si duritate la presiuni foarte ridicate !

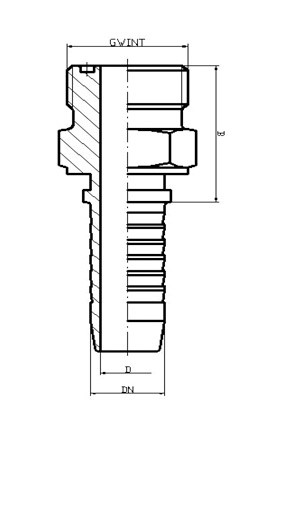

| Dim. int.(DN) | Filet (Inch) | d | E | C |
| DN 06 | 9/16″ | 4 | 15 | 23.2 |
| DN 06 | 11/16″ | 4 | 19 | 28.2 |
| DN 08 | 11/16″ | 5.5 | 19 | 26.2 |
| DN 10 | 11/16″ | 7 | 19 | 26.2 |
| DN 10 | 13/16″ | 7 | 22 | 29.3 |
| DN 10 | 1″ | 7 | 22 | 29.3 |
| DN 12 | 13/16″ | 9.5 | 22 | 29.3 |
| DN 12 | 1″ | 9.5 | 27 | 37.3 |
| DN 12 | 1.3/16″ | 9.5 | 32 | 39.8 |
| DN 16 | 1″ | 12 | 27 | 33.4 |
| DN 16 | 1.3/16″ | 12 | 32 | 40.3 |
| DN 20 | 1.3/16″ | 15 | 32 | 35.9 |
| DN 20 | 1.7/16″ | 15 | 41 | 45 |
| DN 25 | 1.7/16″ | 20 | 38 | 46.3 |
| DN 32 | 1.11/16″ | 26 | 46 | 48.9 |
| DN 38 | 2″ | 32 | 55 | 53.8 |
